Detailed Description
ATS corrugated slitter scorer knives are coated using precision physical jetting treatment. These technologies create low energy, highly hydrophobic surfaces similar to lotus leaves, effectively mitigating adhesion issues on blade edges. During the corrugated board slitting process, a large amount of dust is generated and adheres to the blade edges. This leads to poor slitting quality. In some cases, excessive dust accumulation can even create blockages, causing blade breakage and cardboard damage during high-speed slitting, resulting in double losses.
However, the Anti-sticking (ATS) corrugated slitter scorer knives use anti-sticking technology on their surfaces. This significantly improves the issue of adhesive sticking on the blades, reduces downtime, and enhances production efficiency.
Features
✓

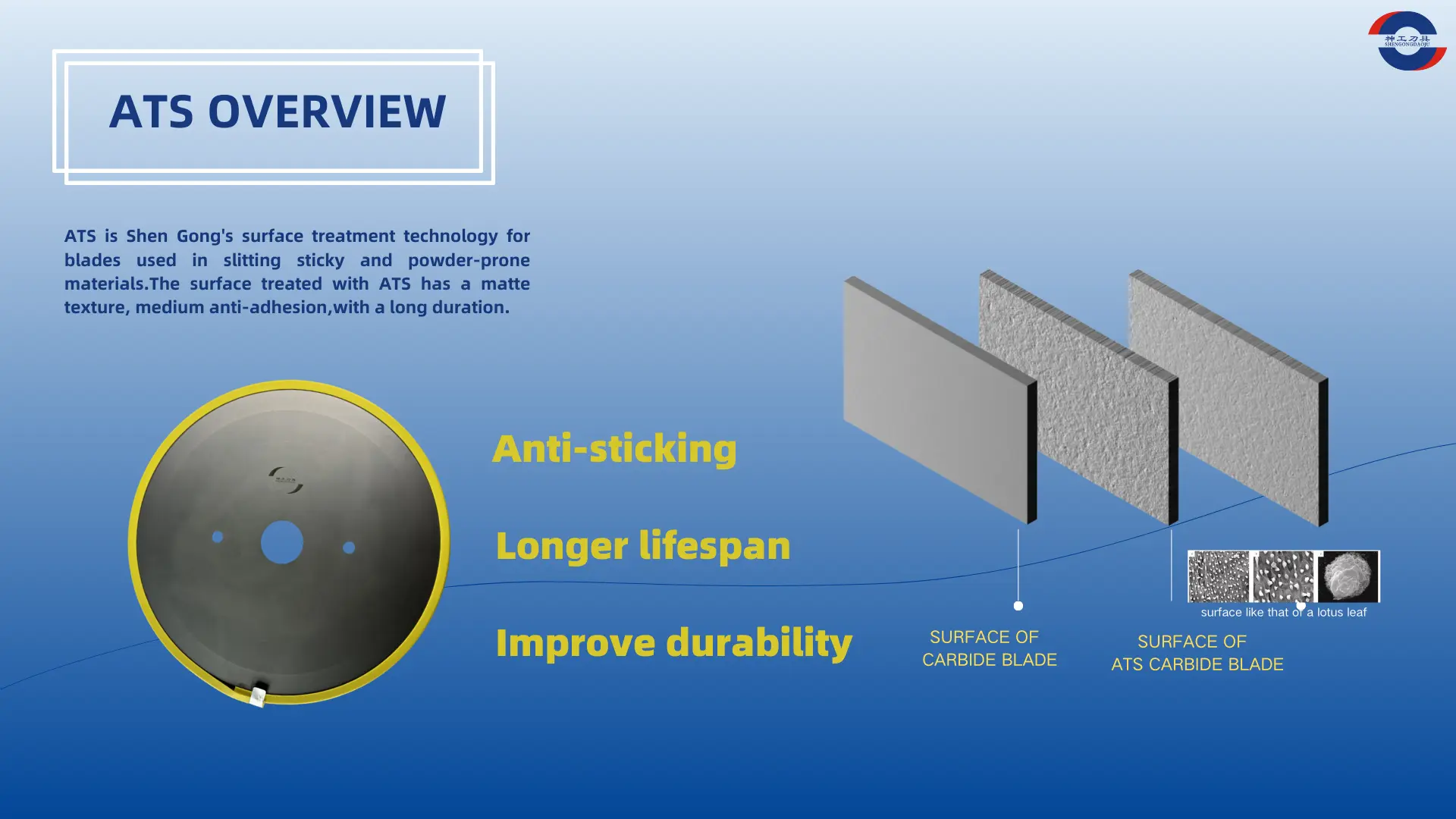

Anti-Sticking (ATS) Technology: Adopting this technology, the surface features a lotus-leaf-like edge to prevent adhesive build-up.
✓

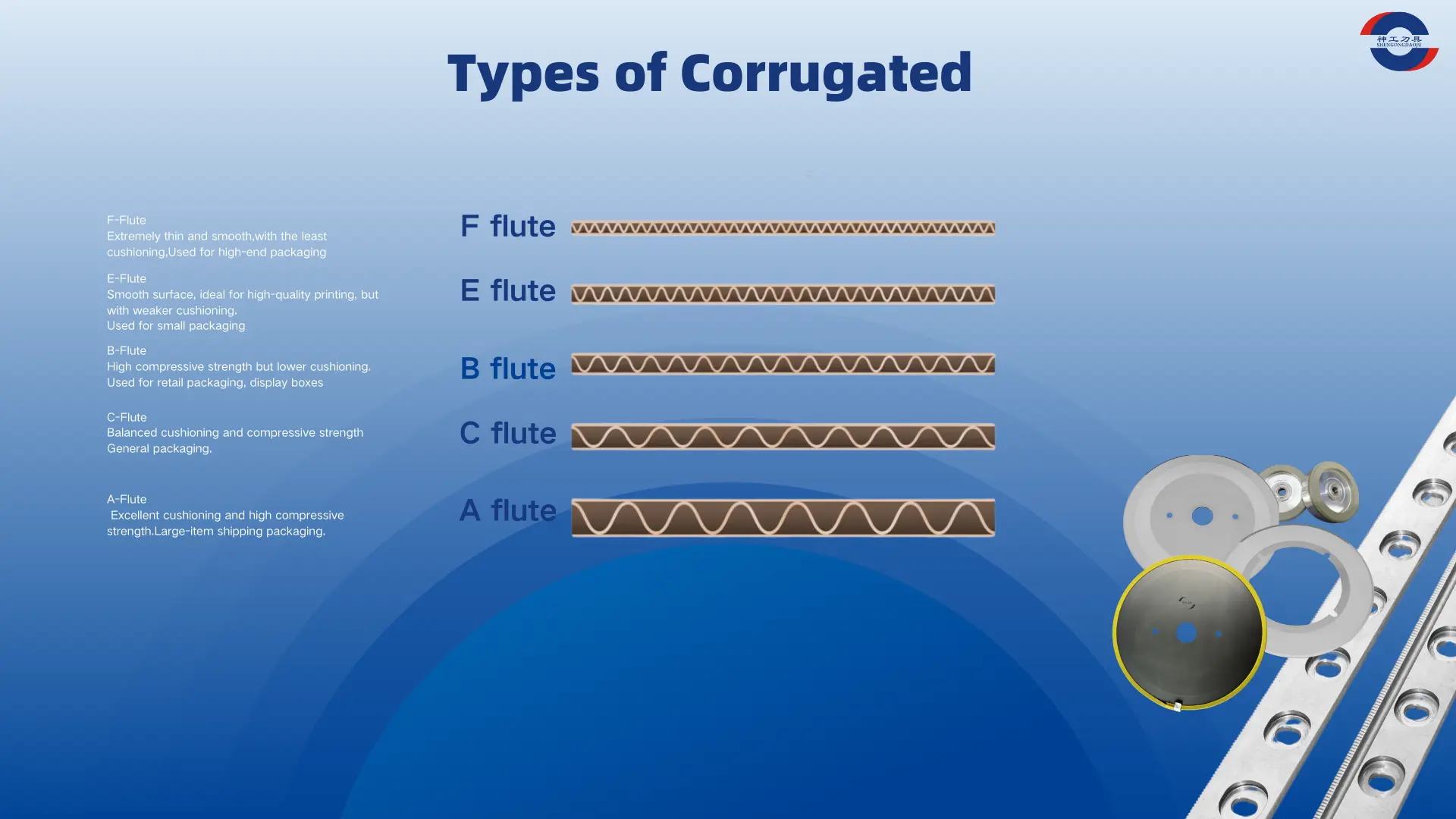

Superior Performance: Suitable for materials prone to adhesive residue and dust, such as corrugated cardboard (A/B/E/F flutes).
✓
Hydrophobic Properties: The contact angle ranges from 120° to 170°, offering superhydrophobic properties.
✓
Longer Lifespan: Anti-sticking slitter circular knives are more durable and compatible with major slitter-scorer machine brands.
✓
Quality Standard: ISO 9001 quality certification.
Specification
| Items |
OD-ID-T mm |
Items |
OD-ID-T mm |
| 1 |
Φ 200-Φ 122-1.2 |
8 |
Φ 265-Φ 112-1.4 |
| 2 |
Φ 230-Φ 110-1.1 |
9 |
Φ 265-Φ 170-1.5 |
| 3 |
Φ 230-Φ 135-1.1 |
10 |
Φ 270-Φ 168.3-1.5 |
| 4 |
Φ 240-Φ 32-1.2 |
11 |
Φ 280-Φ 160-1.0 |
| 5 |
Φ 260-Φ 158-1.5 |
12 |
Φ 280-Φ 202Φ-1.4 |
| 6 |
Φ 260-Φ 168.3-1.6 |
13 |
Φ 291-203-1.1 |
| 7 |
Φ 260-140-1.5 |
14 |
Φ 300-Φ 112-1.2 |
Applications
These slitter knives excel in various challenging corrugated slitting scenarios. In high-dust environments, they are optimal for A, B, E, and F flute corrugated boards and can eliminate the poor slitting quality caused by edge-burrs. When dealing with adhesive-intensive cutting, they prevent gumming during high-temperature processes. For OEE-critical operations, empirical data shows they enable a 20% increase in production efficiency and reduce daily blade sanitation routines.
Frequently Asked Questions
Q1: What is Anti-Sticking (ATS) technology in slitter knives?
A1: ATS technology involves a precision physical jetting treatment that creates a superhydrophobic surface, similar to a lotus leaf, preventing adhesive and dust from sticking to the blade edges.
Q2: Which corrugated flute types are compatible with these blades?
A2: These knives are highly effective for A, B, E, and F flute corrugated boards, especially in environments prone to high dust and adhesive residue.
Q3: How does the hydrophobic coating improve cutting quality?
A3: By maintaining a contact angle of 120° to 170°, the coating prevents gumming and dust accumulation, which eliminates edge-burrs and reduces the risk of blade breakage.
Q4: Can these knives increase production efficiency?
A4: Yes, empirical data indicates that they can increase production efficiency by up to 20% by reducing downtime for blade cleaning and sanitation.
Q5: Are these blades compatible with standard slitter-scorer machines?
A5: Yes, they are designed to be compatible with major industrial slitter-scorer brands such as BHS, ISOWA, and MHI.
Q6: What certifications do these slitter knives hold?
A6: All knives are produced according to ISO 9001 quality management standards to ensure consistent performance and durability.
